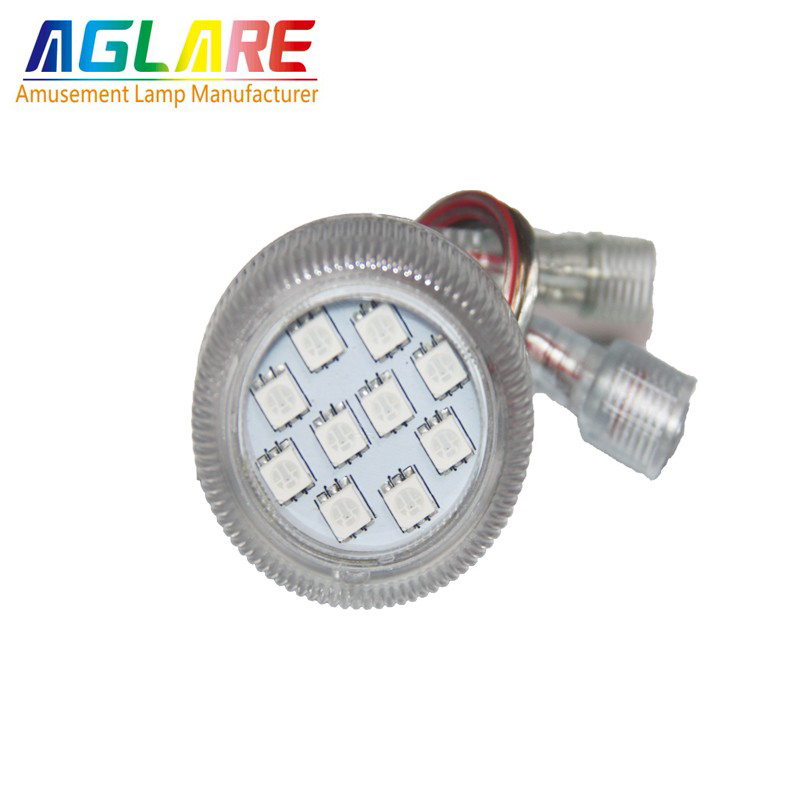

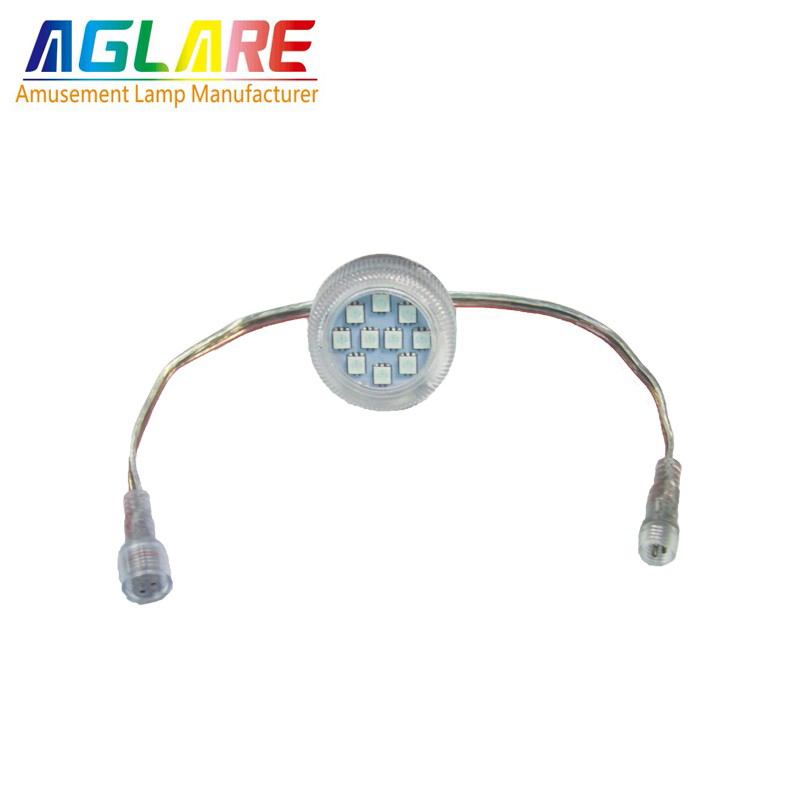

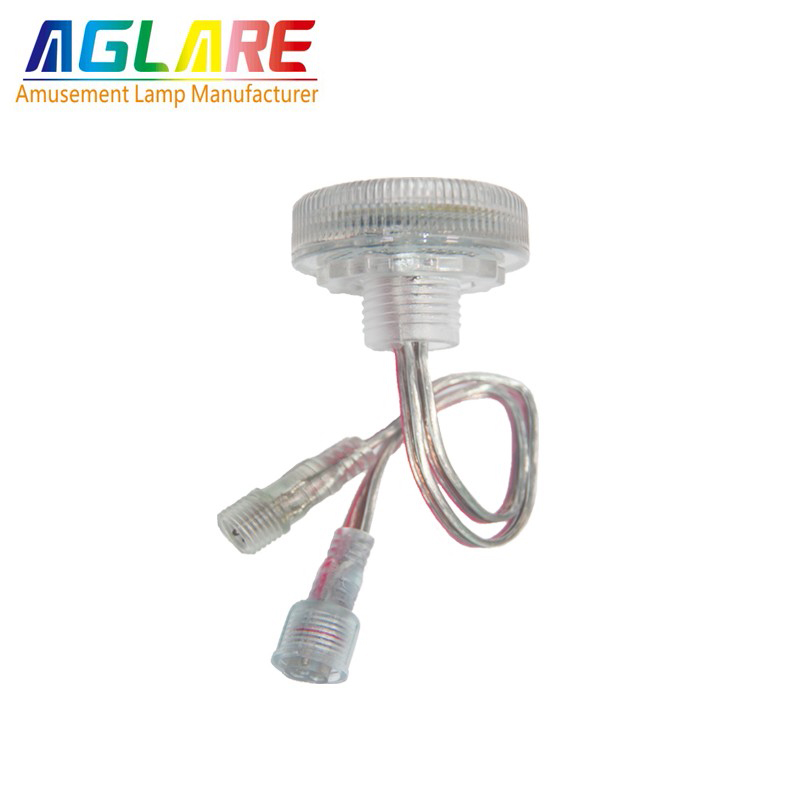

DC24V Waterproof IP65 Funfair Cabochon Led Point Lamps Amusement Led Light

DC24V Waterproof IP65 Funfair Cabochon Led Point Lamps Amusement Led Light

LEDchip: 5050smd

Item Type: YJLED-069-S10RGB

IP Rating: IP65

Lamp Power(W): 3w

Input Voltage(V): DC24V

Warranty(Years): 1

Product Details

DC24V Waterproof IP65 Funfair Cabochon Led Point Lamps Amusement Led Light features:

1.Waterproof cover, acrylic material, high strength, more wear resistant

2.Self-designed PCB circuit, customized according to customer requirements

3.Self-made SMD, control quality well from the beginning

4. double-sided Rubber Washer three-dimensional waterproof

5. Rubber Washer is three-dimensional waterproof

6.waterproof potting process, the shell is made of German Bayer PC material, anti- uv and fireproof.

7.The fixed ring is German Bayer PC material,anti- uv and fireproof.

8.The waterproof procedure, adopt ip65 waterproof male and female connector

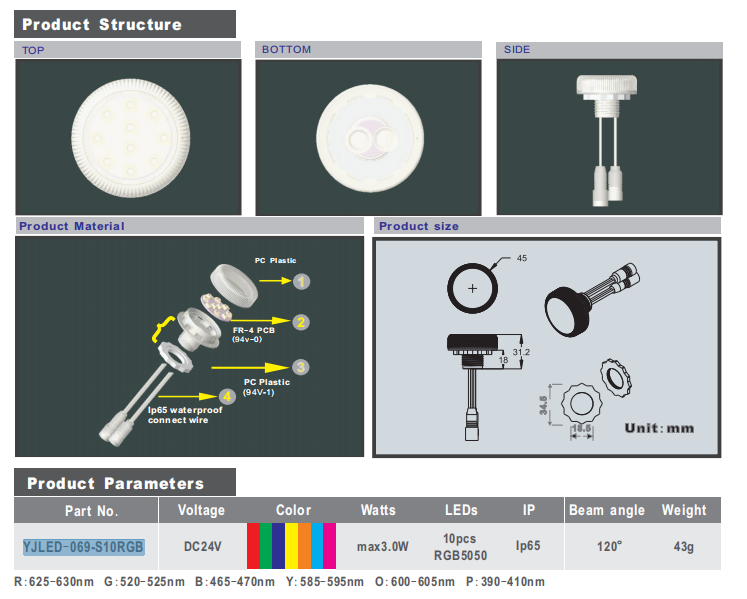

DC24V Waterproof IP65 Funfair Cabochon Led Point Lamps Amusement Led Light Parameter:


Product Parameters


Model NoYJLED-069-S10RGB
Power3W
Luminous Flus6000±5%
Input Voltage24V DC
Power Factor0.9
ChipCREE
CRI75
Color Temperature2700K-8000K
Beam Angle120°
Working Temperature﹣20℃-50℃
IP DegreeIP65
Finish ColorRGB





Company Description:

We are a professional led lighting manufacturer from China. Our main products led lighting are divided into four categories.

(1)LED components Such as SMD LED and COB LED. Our current capacity is 15 million per month.

(2)LED driver The main products are power 8-12W, 20W, 30W, 40W for different purposes. Our current production capacity is 60,000 per month.

(3)LED amusement lighting The main products are and LED street lamp. Our current production capacity is 100,000 per month.

(4)LED flood lighting include RGB flood light. The main products are , and LED strip Our current capacity is 100,000 per month.

(5)Amusement LED bulbs,Our current production capacity is 300,000-500,000 per month


Applications:

Amusement LED lamps are widely applied in amusement equipments in theme parks, such as Ferris Wheels, Roller Coasters, Carousels, Merry-go-rounds, Wheel Rides, Tower Rides, Flume Rides and Water Rides.
