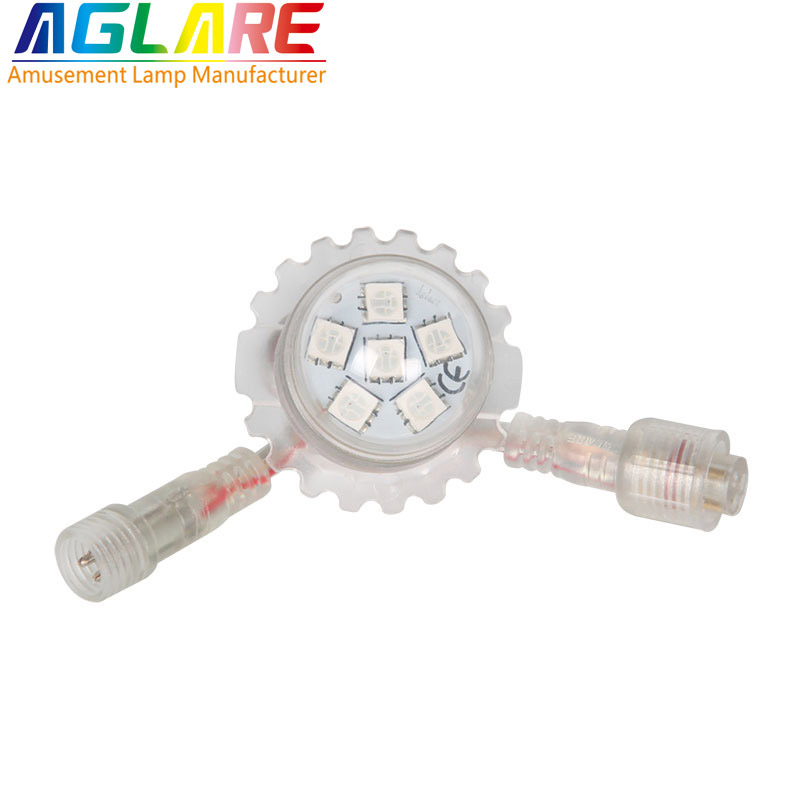

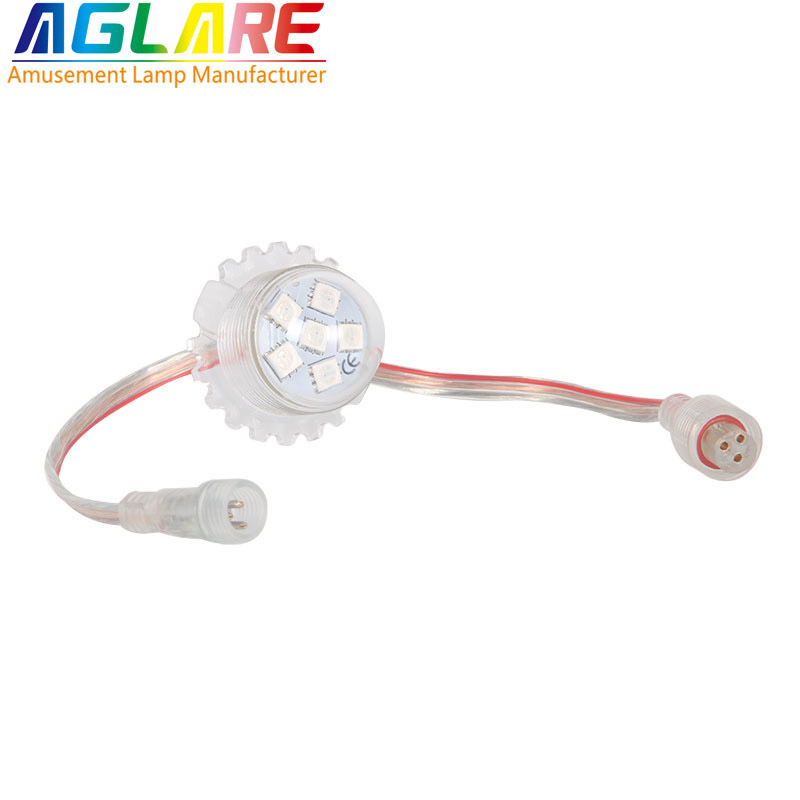

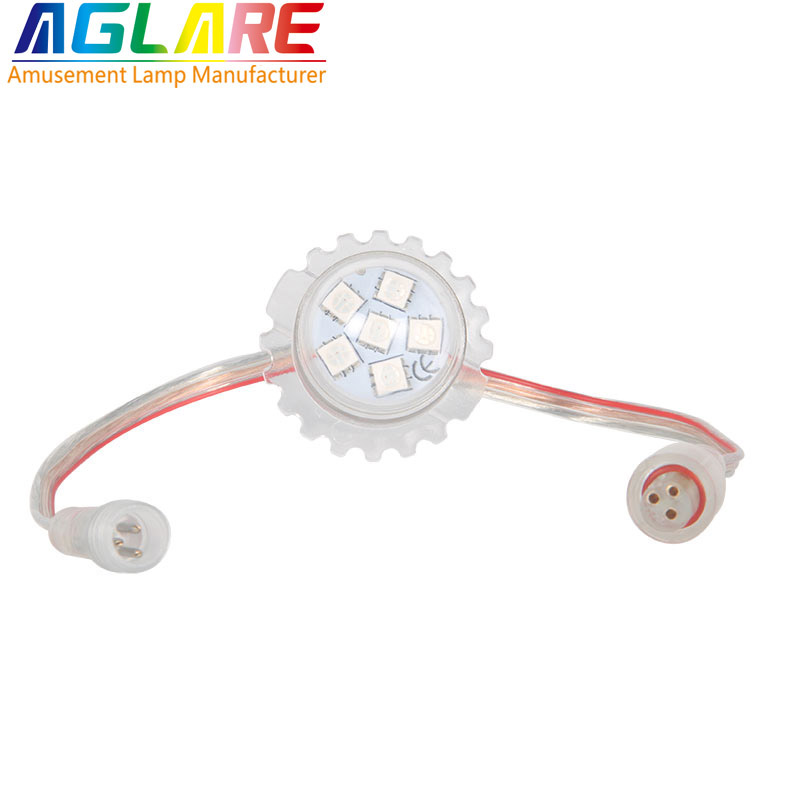

28mm 6leds clear shell pixel led lamp for amusement ride

28mm 6leds clear shell pixel led lamp for amusement ride

LEDchip: 5050

Item Type: YJLED-026

IP Rating: IP65

Lamp Power(W): 1-1.2W

Input Voltage(V): DC12/24V AC 24V

Warranty(Years): 1

Product Details

28mm 6leds clear shell pixel led lamp for amusement ride features:

1.Aglare is a professional manufacturer of Amusement led,downlight with experience of 11 years.
2.Class A quality with 1 years warrany for all items.
3.Orignal Sanan chips with 100%Class A grade.
4.All leds 100% Qc passed before the shipment.
5.Fully automantic instruments and equipments like solica crystal,wire,sealing glue,spectral color separation


Product Parameters


Model No:YJLED-026
Power:1-1.2W
RGB:programme
Voltage:DC12/24V AC24V
Power Factor:0.9
Chip:5050 SMD
CRI:75
Color:RGB
Beam Angle:180°
Working Temperature:﹣20℃-50℃
IP Degree:IP65
LED quantity:6


Description:

Shenzhen Aglare Lighting Co., Ltd provide outdoor&indoor LED fLood fights from 10W to 155W,any led flood light cool beams with no UV or IR radiation ,Long lifespan and energy saving, high efficiency of heat sinking.We also provide some RGB LED floodlights with controller and maintenance free.LED flood lights are one of out hot sale products, we also make and market high power LED lamps, LED strip lights,LED panel lights, LED tube lights, LED falling snow lights,LED ceiling lights,LED  modules,amusement LED lamp, and other  variety  of  LED  lighting products, which are widely applied in backlight, decoration and illumination.

Preprogrammable DC24V RGB turbo lights

Item No.YJLED-026

Working voltage:DC24V

Wateproof connector,IP65

Work with T-10000S controller,16 programs can be editted



1. Amusement LED Lamp:RGB(muticolor)

 2.LED quantity: 6 pieces

 3. LED type: 5050 SMD LED

 4. Operating condition: DC15mA

 5. Input voltage: DC24V

 6. High consistency in light color, high cost-effective

 7. Total power consumption: 1.2W

 8. Colors available: red, green, blue(digital)

  9 . Luminous intensity: 90-100lm for white

 10. Excellent thermal management and lumen maintenance



 More Information please contact Aglare's Professional sales attentive service team.


Applications:



Amusement LED lamps are widely applied in amusement equipments in theme parks, such as Ferris Wheels, Roller Coasters, Carousels, Merry-go-rounds, Wheel Rides, Tower Rides, Flume Rides and Water Rides.
